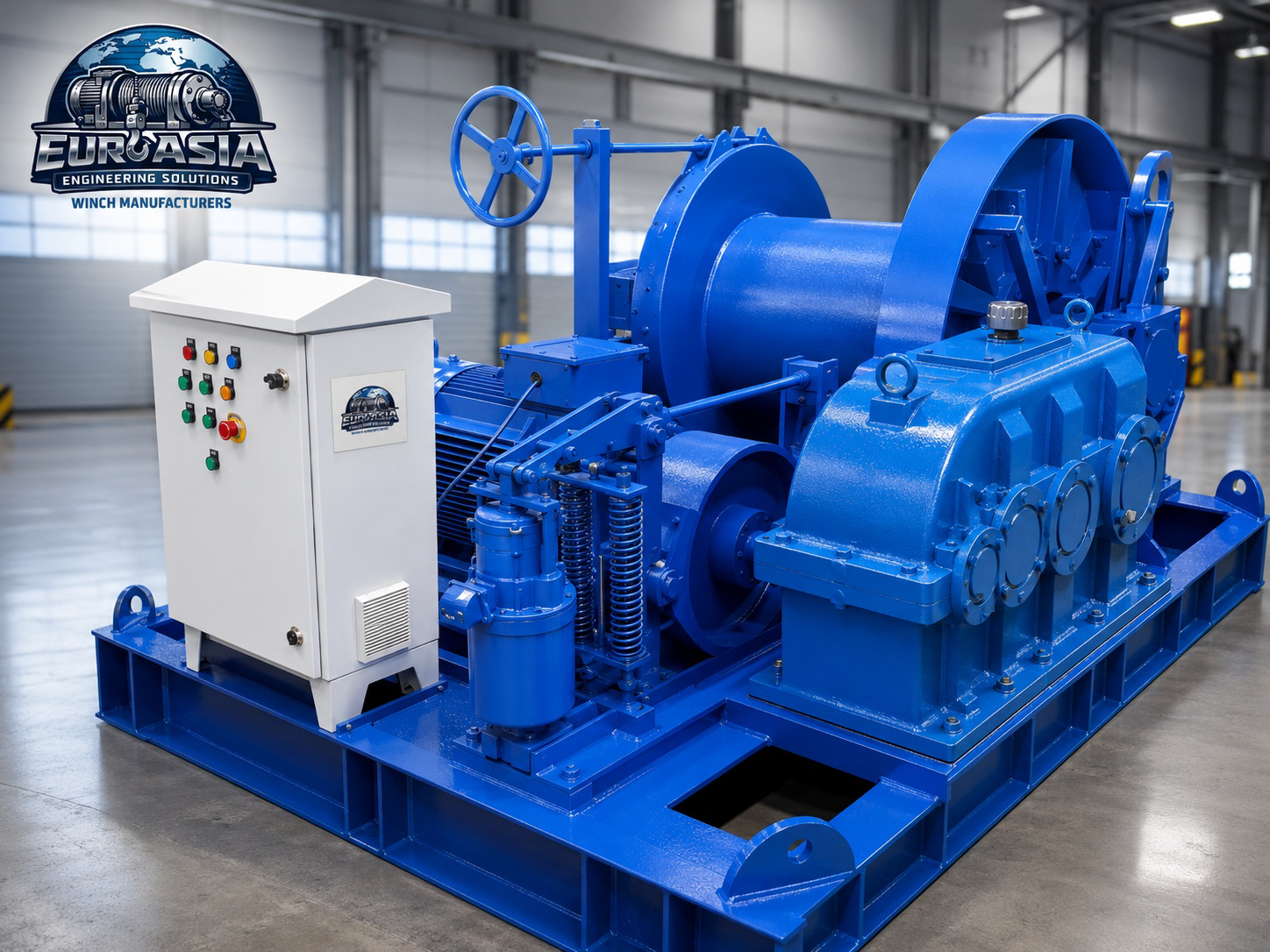

The EuroAsia 25 Ton Electric Winch Machine (25,000 kg capacity) is an ultra heavy-duty, crane-duty lifting solution engineered for extreme industrial applications.
Designed with high-strength structural components, advanced multi-stage gearing, and precision braking systems, this winch delivers exceptional performance, safety, and long-term reliability under continuous heavy load conditions.
Ideal for mega infrastructure, mining, marine, and heavy engineering industries.
Heavy-duty 25 Ton Electric Winch designed for industrial lifting with safety and performance.
25,000 kg (25 Ton)
5–7 m/min
500 meters
40 HP, 3 Phase
Helical + Spur Multi-Stage
Electro-Hydraulic Thruster Brake
Crane Duty Pendant
IP-55 Weatherproof
VFD Speed Control
Heavy-duty 25 Ton Electric Winch Machine designed for extreme industrial applications with high safety and durability.
| Specification | Details |
|---|---|
| Model | 25 Ton Electric Winch Machine |
| Rated Capacity | 25,000 kg |
| Drum Capacity | 500 meters |
| Wire Rope Diameter | 32 mm |
| Lifting Speed | 5–7 m/min |
| Motor Power | 40 HP |
| Power Supply | 415V ±10%, 3 Phase, 50 Hz |
| Motor Speed | 960 RPM |
| Duty Cycle | 40% CDF |
| Gear System | Helical + Spur Reduction |
| Gear Ratio | 1:60 |
| Brake System | Electro-Hydraulic Thruster |
| Structure Weight | Approx. 3500 kg |
| Control System | Push Button Pendant |
| Panel Protection | IP-55 Weatherproof |
| Optional | VFD Panel |
High-strength steel beams for extreme load handling.
500-meter capacity with 32 mm wire rope.
EN8 forged steel for heavy-duty durability.
Helical + spur gearbox with high torque output.
40 HP crane duty motor for continuous operation.
Optimized lifting speed 5–7 m/min.
Electro-hydraulic brake system for instant stopping.
Overload protection + MCB safety system.
Transformer isolated control system.
Crane pendant control (Forward/Reverse)
IP-55 weatherproof panel
Optional VFD speed control
Construction & infrastructure
Mining & heavy industry
Marine & steel plants
High load capacity, long life, low maintenance and weatherproof industrial design.
Ready-to-install machine, no complex setup required.
Pre-delivery load test certified at 1.5x rated capacity.
Expert assistance from our engineering team post-delivery.
User manual, wiring diagram, and maintenance guide included.
